How to Resolve the “TPM Device Not Detected” Error Easily

If you’ve ever seen the “TPM Device Not Detected” message on your Windows computer, it can be both confusing and concerning. TPM (Trusted Platform Module) is a security chip that helps protect sensitive data such as encryption keys and passwords. It’s also essential for features like BitLocker encryption and Windows 11 installation requirements. When your system can’t detect this chip, certain features may not work properly, and your device might become vulnerable to security risks.

Don’t worry—this issue is usually fixable. In this detailed guide, you’ll learn what the TPM device is, why it might not be detected, and how to fix it using simple and effective methods.

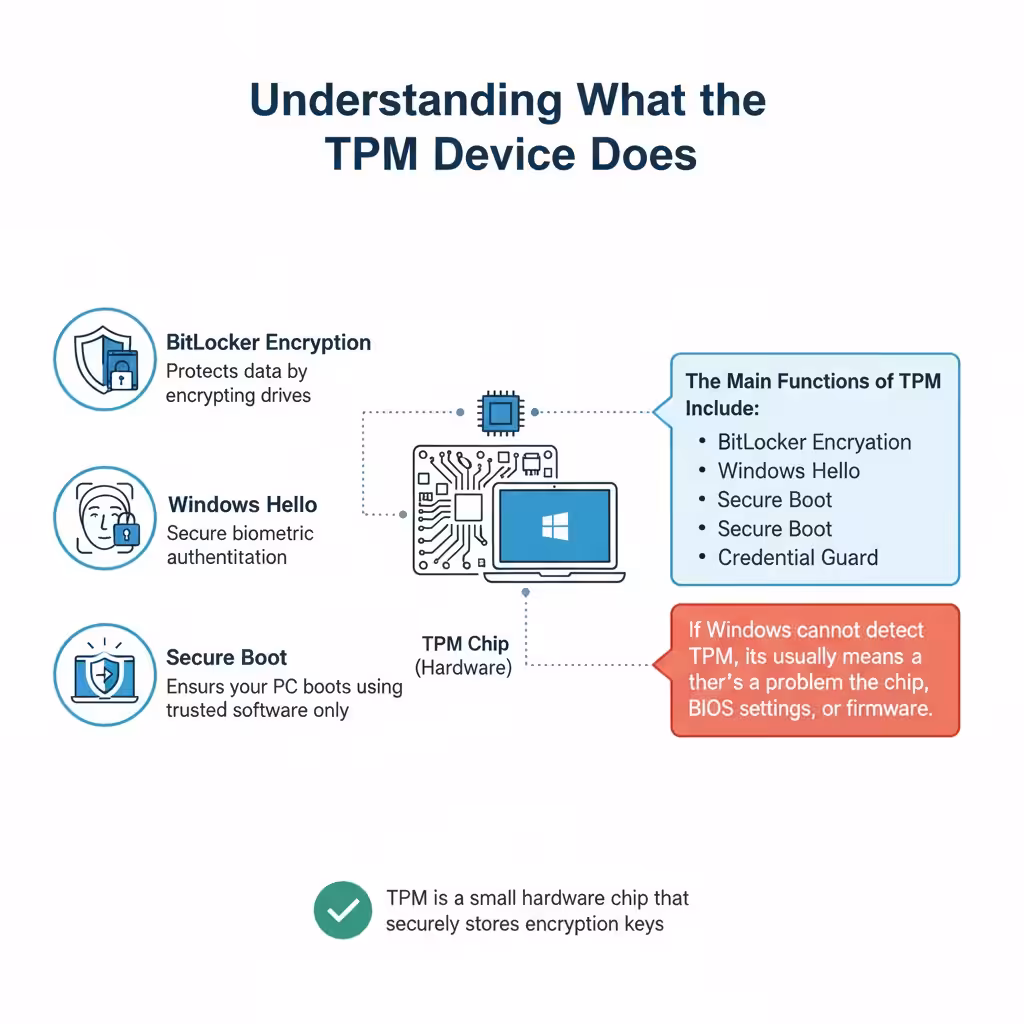

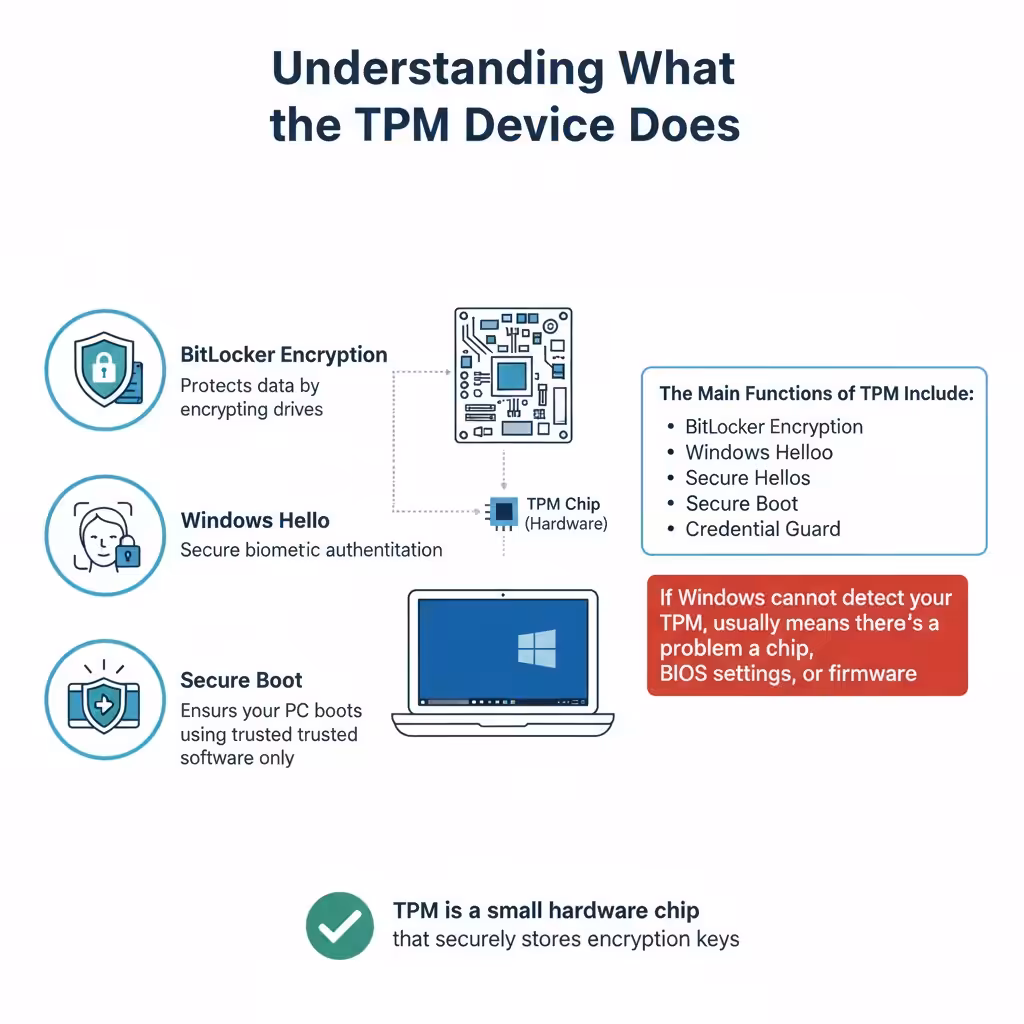

Understanding What the TPM Device Does

Before we get into troubleshooting, it’s helpful to understand what TPM is and why it matters.

The Trusted Platform Module (TPM) is a small hardware chip, typically soldered onto your motherboard. It stores encryption keys, digital certificates, and passwords securely, helping Windows manage cryptographic operations.

The main functions of TPM include:

• BitLocker Encryption: Protects data by encrypting drives.

• Windows Hello: Uses TPM for secure biometric authentication.

• Secure Boot: Ensures your PC boots using trusted software only.

• Credential Guard: Helps prevent credential theft.

If Windows cannot detect your TPM, it usually means there’s a problem with the chip, BIOS settings, or firmware.

Common Causes of “TPM Device Not Detected” Error

The TPM device error can appear for several reasons. Identifying the root cause will help you fix it faster.

Here are some of the most common causes:

1. TPM is disabled in BIOS or UEFI settings

2. Outdated BIOS or firmware

3. Corrupted TPM data or keys

4. Windows update or driver conflicts

5. Hardware malfunction (rare but possible)

Now let’s go step-by-step through the best ways to fix this problem.

Step 1: Check If Your System Has a TPM Chip

First, confirm whether your device actually includes a TPM chip.

To check in Windows:

1. Press Windows + R to open the Run dialog box.

2. Type tpm.msc and press Enter.

3. The TPM Management Console will open.

   • If you see “The TPM is ready for use”, your TPM is working properly.

   • If you see “Compatible TPM cannot be found”, it means Windows can’t detect it.

You can also check TPM status through Device Manager:

1. Right-click the Start menu and select Device Manager.

2. Expand Security devices.

3. Look for Trusted Platform Module 2.0.

   • If it’s missing, TPM may be disabled in BIOS.

Step 2: Enable TPM in BIOS or UEFI

In many cases, the TPM is simply disabled by default in BIOS or UEFI settings. Re-enabling it often resolves the issue.

How to enable TPM in BIOS:

1. Restart your computer.

2. While booting, press the BIOS key (usually F2, DEL, or ESC) to enter BIOS Setup.

3. Locate the Security, Trusted Computing, or Advanced tab (this varies by manufacturer).

4. Find TPM, PTT, or fTPM:

   • Intel-based systems: Look for PTT (Platform Trust Technology).

   • AMD-based systems: Look for fTPM (Firmware TPM).

5. Set it to Enabled.

6. Save changes and exit BIOS.

After rebooting, check again by running tpm.msc in Windows. The error should be gone if TPM is properly enabled.

Step 3: Clear the TPM

Sometimes, the TPM might be detected but not functioning correctly due to corrupted keys or configuration data. Clearing it can resolve conflicts.

To clear TPM in Windows:

1. Press Windows + I to open Settings.

2. Go to Update & Security > Windows Security > Device Security.

3. Under Security Processor, click Security processor details.

4. Select Security processor troubleshooting.

5. Click Clear TPM and follow the prompts.

⚠️ Important: Clearing TPM will delete all keys stored on it. Make sure you have backed up any important encryption keys or recovery passwords (especially for BitLocker).

After clearing TPM, restart your PC and see if Windows now detects it properly.

Step 4: Update BIOS or UEFI Firmware

An outdated BIOS or firmware can cause TPM detection problems. Manufacturers often release updates to improve compatibility with Windows 10 and 11.

How to update BIOS/UEFI:

1. Visit your computer or motherboard manufacturer’s official support website.

2. Enter your system model number.

3. Download the latest BIOS or firmware version.

4. Follow the provided instructions carefully to update.

Once the update is complete, reboot your PC and check if TPM is now detected.

Step 5: Reinstall the TPM Driver

If TPM still doesn’t show up, reinstalling its driver might help.

Here’s how:

1. Press Windows + X and select Device Manager.

2. Expand Security devices.

3. Right-click Trusted Platform Module 2.0 and select Uninstall device.

4. Restart your PC.

Windows will automatically reinstall the correct driver upon reboot.

If it doesn’t, click Action > Scan for hardware changes in Device Manager to force detection.

Step 6: Reset BIOS to Default Settings

If none of the above steps work, your BIOS configuration might be interfering with TPM detection. Resetting BIOS to factory defaults can help.

To reset BIOS:

1. Enter BIOS Setup during startup (usually by pressing F2, DEL, or ESC).

2. Look for an option like Load Setup Defaults, Restore Factory Settings, or Reset to Default.

3. Confirm and save the changes.

4. Reboot your computer.

Now, go back into BIOS and ensure TPM is enabled again.

Step 7: Check for Windows Updates

Sometimes, Microsoft releases patches that fix TPM-related issues. Always make sure your Windows is up to date.

1. Press Windows + I to open Settings.

2. Go to Update & Security > Windows Update.

3. Click Check for updates and install any available updates.

After updating, restart your computer and check whether the error has disappeared.

Step 8: Perform a Hardware Check

If you’ve tried all the software fixes and your TPM device still isn’t detected, the issue might be hardware-related.

You can:

• Contact your PC manufacturer’s technical support for a hardware diagnostic.

• Ensure the motherboard actually supports TPM (if you built your PC).

• For older systems, you may need to install a physical TPM module if your motherboard has a header for it.

Preventing Future TPM Detection Issues

Here are a few tips to help you avoid running into this issue again:

• Keep your BIOS and Windows updated regularly.

• Avoid disabling TPM unless necessary.

• Do not clear or reset TPM unless prompted by Windows or a trusted IT professional.

• Back up your BitLocker recovery keys before making BIOS or firmware changes.

Conclusion

The “TPM Device Not Detected” error can be frustrating, especially since TPM plays a crucial role in Windows security and functionality. However, in most cases, it’s caused by a simple BIOS setting, outdated firmware, or minor system misconfiguration.

By following the steps above—enabling TPM in BIOS, clearing TPM data, updating firmware, or reinstalling drivers—you can usually restore normal operation in just a few minutes.
